Heavy Duty HS-VT Manual Chain Hoist

1. Double pawls supporting fail-safe break mechanism for secure operations.
2. Wet friction discs with longer life.
3. Unique chain guide.
4. Heat treated steel side plates, gears and shafts for enhanced strength.
5. Quenched and Tempered High Tensile Alloy Steel Chain and hooks.
6. Forged upper and bottom hooks with forged steel safety latches.
7. Powder coated finish.

Min. order: 1 Piece

Payment: TT,LC,DA,DP

Shipment: Contact us to negotiate shipping details

Send email to us

Product Detail

Product Tags

Description

HS-VT Chain Blocks are generally used for lifting or moving heavy loads, for example in industrial, construction or freight locations. Hand Chain Hoist can be used to lift heavy objects off the ground or low for easy transport or placement where needed. Because chain hoists are relatively light and easy to operate, they can be pulled by handles and ropes to increase efficiency and safety.

Manual Chain Hoist Detailed Showcase:

Fine Steel Shell: The shell is solid with strong impact resistance and easy disassembly; Beautiful appearance;

Crampon: The hanging ring has a safety card. The goods are not easy to fall off. Not easy to break. Strong bearing capacity;

Double Brake: Double brake double stop, safety factor increased by more than 2 times;

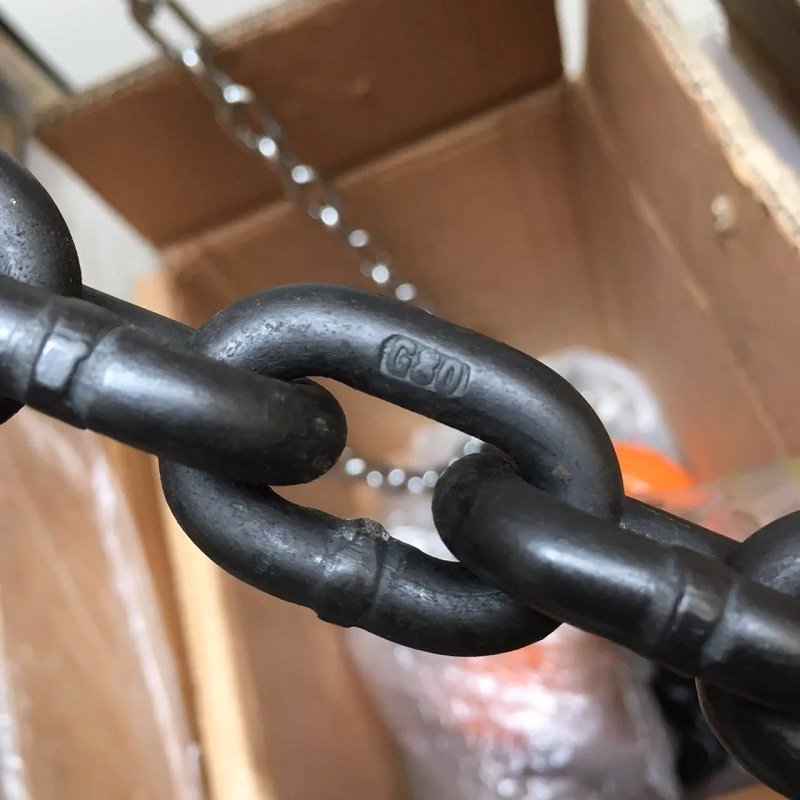

G80 Lifting Chain: Adopt manganese steel hoisting chain, quenching treatment. Strong bearing capacity, not easy to break, strong and durable;

Detail Design: Three screw nuts on the back fix the shell which is not easy to fall off. Beautiful and wear resistant.

Manual Chain Hoist Parameters

Model	Capacity (T)	Standard Lifting Height	Chain Pull to lift full Load (N)	Dia(Lifting Chain)	Number of Lifting Chains	Test Load (T)	Net Weight (KG)	Gross Weight (KG)	Extra Weight per Meter of Extra Lifting Height
SY-MC-HS-VT0.5	0.5	2.5	300	5mm	1	0.75	7	7.5	1.5
SY-MC-HS-VT1	1	3	304	6mm	1	1.5	10.5	11	1.8
SY-MC-HS-VT1.5	1.5	3	395	8mm	1	2.25	15.5	16	2
SY-MC-HS-VT2	2	3	330	8mm	1	3	17	18	2.7
SY-MC-HS-VT3	3	3	402	10mm	2	4.5	23	25	3.2
SY-MC-HS-VT5	5	3	415	10mm	2	7.5	39	42	5.3
SY-MC-HS-VT10	10	3	428	10mm	4	12.5	70	77	9.8
SY-MC-HS-VT20	20	3	435*2	10mm	8	25	162	210	19.8
SY-MC-HS-VT30	30	3	435*2	10mm	12	45	238	310	19.8
SY-MC-HS-VT50	50	3	435*2	10mm	22	75	1092	1200	19.8
